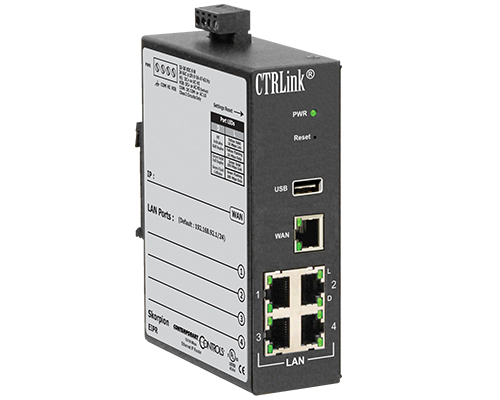

Skorpion IP Routers cost-effective wired routers

Product Overview

  • Wired/Wireless IP Router
  • VPN (-V model only)
  • Web page configuration
  • 10/100 Mbps WAN port
  • 4-port 10/100 Mbps Ethernet LAN switch
  • PAT, NAT and Port Forwarding
  • NAT Loopback
  • Remote Router Access
  • Allowlist
  • Stateful firewall (can be disabled)
  • DHCP client (WAN) and DHCP server (LAN)
  • Wireless connectivity via USB port
  • DIN-rail mounting
  • Diagnostic LEDs
  • CE Mark, RoHS, UL 508, C22.2 No. 142-M1987
  • 24 VAC/VDC powered

Product Details

The EIPR links two 10/100 Mbps Internet Protocol (IPv4) networks-passing appropriate traffic while blocking all other traffic. One network is the local-area-network (LAN); the other is the wide-area-network (WAN). The built-in stateful firewall passes communication initiated on the LAN-side while blocking WAN-side initiated communication. With Port Address Translation (PAT), LAN-side clients can access the Internet. Network Address Translation (NAT) allows a one-to-one translation between LAN-side and WAN-side devices. With Port Forwarding, LAN-side devices can be accessed from the Internet. The EIPR incorporates a four-port Ethernet switch for multiple LAN-side connections. An external Ethernet-based modem - cable or DSL - can be used to connect to the Internet. DSL modems connect via the PPPoE protocol. A USB port allows expansion to wireless networks.

If a suitable USB adapter is attached, either EIPR model can become a Wi-Fi access point. The EIPR-V can also access cellular networks through its USB port if a suitable cellular adapter is attached (in which case its wired WAN port is disabled). With its real-time clock and OpenVPN firmware, the EIPR-V also supports a VPN (virtual-private-network) - so you can obtain secure remote communication - compatible with cloud-VPN service from Contemporary Controls.

Visit our RemoteVPN product page for more information about secure remote communication over the internet.

Ordering Information

Model Description
EIPR-E Skorpion 10/100Mbps IP Router $329
EIPR-V Skorpion 10/100Mbps IP Router with VPN $439


Model Description
AI-XFMR Wall-mount plug-in transformer 120 VAC (nom) input/24 VAC (nom) output (details...) $39
AI-XFMR-E Wall-mount plug-in transformer 230 VAC (nom) input/24 VAC (nom) output (details...) $55
ACC-USBADPT-1 USB Right Angle Swivel Adapter (details...) $15
ACC-MTGKIT-1 Wall Mount USB Adapter Enclosure with 5 metre cable (details...) $76
ACC-USBCBL-15 15' USB Extension Cable $21
MDR-20-24 24VDC 20W DIN RAIL POWER SUPPLY (details...) $40
MDR-40-24 24VDC 40W DIN RAIL POWER SUPPLY (details...) $50
SDR-75-24 24VDC 75W DIN RAIL POWER SUPPLY (details...) $90
