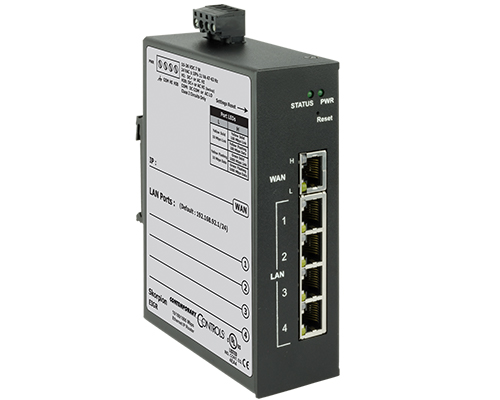

Skorpion Gigabit IP Router Wired or Wireless Routers

Product Overview

  • Web page configuration
  • 10/100/1000 Mbps WAN port
  • 4-port 10/100/1000 Mbps Ethernet LAN switch
  • Secure Virtual Private Network (VPN) Client/ Server (VPN models only)
  • PAT, NAT, Port Forwarding and Port Range Forwarding
  • Stateful Firewall
  • NAT Loopback
  • Remote Router Access
  • Allowlist
  • DHCP client (WAN) and DHCP server (LAN)
  • DIN-rail mounting
  • Diagnostic LEDs
  • CE Mark, RoHS, UL 508, C22.2 No. 142-M1987
  • 24 VAC/VDC powered
  • Operates over 0 to 60°C (EIGR-E / EIGR-V/ EIGR-VB)
  • Operates over −40 to +75°C (EIGR-EX / EIGR-VX)

Product Details

The EIGR series consists of high-speed routers that link two 10/100/1000 Mbps Internet Protocol (IPv4) networks — passing appropriate traffic while blocking all other traffic. One network is the local-area-network (LAN); the other is the wide-area-network (WAN). The built-in stateful firewall passes communication initiated on the LAN-side while blocking WAN-side initiated communication. With Port Address Translation (PAT), LAN-side clients can access the Internet. Network Address Translation (NAT) allows a one-to-one translation between LAN-side and WAN-side devices. With Port Forwarding, LANside devices can be accessed from the Internet.

Wired Routers (EIGR-E / EIGR-EX)

The EIGR-E incorporates a four-port Ethernet switch for multiple LAN-side connections. An external Ethernet-based modem — cable or DSL — can be used to connect to the Internet. DSL modems connect via the PPPoE protocol. The EIGR-E operates over 0 to 60°C temperature range and the EIGR-EX operates over −40 to +75°C temperature range.

Wired VPN Routers (EIGR-V / EIGR-VX / EIGR-VB)

The EIGR-V incorporates a four-port Ethernet switch for multiple LAN-side connections. An external Ethernet-based modem — cable or DSL — can be used to connect to the Internet. DSL modems connect via the PPPoE protocol. The EIGR-V series includes real-time clock and OpenVPN client/server functionality. As a VPN Server, up to 15 router clients and 15 PC clients can be supported. The EIGR-V operates over 0 to 60°C temperature range and the EIGR-VX operates over −40 to +75°C range.

The EIGR-VB is similar to EIGR-V and supports real-time clock and OpenVPN client server functionality. But as a VPN server, it supports bridge mode VPN where up to 10 VPN clients are bridged to the EIGR-VB router's LAN side, allowing the passing of multicast and broadcast messages over the VPN tunnel. The VPN interface for the clients is assigned an IP address corresponding to LAN subnet and provides the same application experience as if the client device were part of the LAN of the EIGR-VB. This facilitates easier secure remote access, especially for BACnet systems without the need to setup any BBMDs. The EIGR-VB operates over 0 to 60°C temperature range.

Remote Access

Visit our RemoteVPN product page for more information about secure remote communication over the internet.

Ordering Information

Model Description
EIGR-E Skorpion GigE IP Router 0 to 60°C $399
EIGR-EX Skorpion GigE IP Router -40 to +75°C $439
EIGR-V Skorpion GigE IP Router with VPN 0 to 60°C $499
EIGR-VX Skorpion GigE IP Router with VPN -40 to +75°C $539
EIGR-VB Skorpion GigE IP Router with Bridge VPN 0 to 60°C $499

Accessories

Model Description
AI-XFMR Wall-mount plug-in transformer 120 VAC (nom) input/24 VAC (nom) output (details...) $35
AI-XFMR-E Wall-mount plug-in transformer 230 VAC (nom) input/24 VAC (nom) output (details...) $55
