BASremote Versatile Building Automation Appliance

BAS Automation BASremote

Product Overview

The BAS Remote series provide the system integrator a flexible building block when integrating diverse building automation protocols or when expanding the number of points in a building automation system. By supporting open system protocols such as BACnet®, Modbus and Sedona Framework SOX, the BAS Remote series is easily adaptable. For small systems, it can operate stand-alone. For larger systems, it can communicate to supervisory controllers over Ethernet.

Depending upon the model, the BAS Remote has the flexibility to provide the following:

Versatile Control Device
Remote I/O, Router, Gateway and Controller

  • Web-page configuration
  • BACnet/IP Remote I/O
  • Modbus TCP Remote I/O
  • Modbus Serial to Modbus TCP Router
  • Modbus Serial to BACnet/IP Gateway
  • Modbus Master to Attached Modbus Slaves
  • Powered by Sedona Framework™ 1.2
  • Sedona Framework™ Certified
  • Power over Ethernet (PoE)

Flexible Input/Output
Expandable by adding modules

  • Customizable webpages
  • Web Services
  • Six universal input/output points web-page configurable
  • Two relay outputs
  • Thermistor, voltage, current, contract closure, and pulse inputs
  • Voltage, current and relay outputs
  • 2-wire Modbus Serial Expansion port
  • 2-wire expansion port for up to three expansion I/O modules

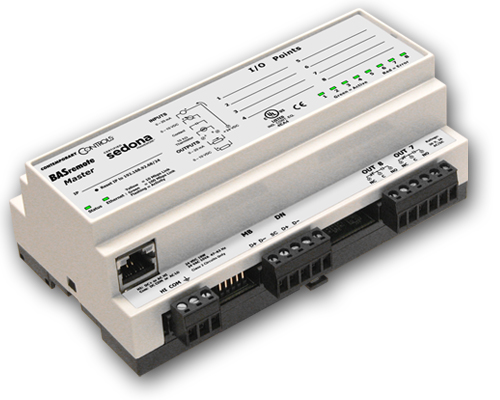

BAS Remote Master - Versatile Web Appliance

The BAS Remote Master provides the ultimate in flexibility. It can be used for expansion I/O at remote locations where an Ethernet connection exists. Its built-in router and gateway capabilities address unique integration needs where more than one communications protocol is involved. It can operate as a function block programmable controller with its resident Sedona Framework Virtual Machine. Powered by a Linux engine, the BAS Remote Master can operate as BACnet/IP and Modbus TCP remote I/O, Sedona Framework controller, Modbus Serial to Modbus TCP router, Modbus Serial to BACnet gateway, and Modbus master to attached Modbus slaves all at the same time. A 10/100 Mbps Ethernet port allows connection to IP networks and popular building automation protocols such as Modbus TCP, BACnet/IP, and Sedona SOX. Six universal I/O points and two relay outputs can be confi gured through resident web pages using a standard web browser and without the need of a special programming tool. A 2-wire Modbus serial port can greatly expand the I/O count with built-in routing to Modbus TCP clients. If BACnet mapping is preferred, the unit incorporates a Modbus serial to BACnet/IP gateway. The BAS Remote Master also allows you to install custom web pages so you can view the status of your system in a convenient manner. And using its onboard Web Services, your IT department can easily interact with the BAS Remote Master.

Additional universal I/O can be achieved with the simple addition of BAS Remote Expansion modules. The BAS Remote PoE has the same capabilities as the BAS Remote Master except it is powered over the Ethernet connection thereby providing a "One Cable Solution".

  Data Sheet (English)

  Data Sheet (German)

  Installation Guide (firmware 3.5 and above)

  Installation Guide (firmware 3.4 and below)

  User Manual (firmware 3.7.x)

  User Manual (firmware 3.1.x)

  User Manual (firmware 2.x)

  Application Guide - BASremote - Versatile BACnet/IP Controller/Gateway

  Application Note - Redundant Sump Pump Controller
If your home is in a low-lying area prone to flooding and you have experienced a flooded basement more than once, you are acutely aware of redundant sump pump schemes. And if your area has overhead power lines, losing power in a storm is your worst nightmare. Installing a backed-up battery sump pump for emergencies is common, but they lack pumping power, need periodic exercising and lack energy capacity for long outages. Portable gasoline generators have more energy capacity but you must be home during a storm to start the generator. Probably the best solution is a natural gas-fired standby generator with an automatic transfer switch. Finally, add a second pump in your sump in case one fails.

  Application Note - Mapping of Modbus Registers to BACnet Objects Using the BASremote
Modbus remains a popular protocol and is frequently encountered as the default protocol used on mechanical equipment. It is simple to use and understand but it is not BACnet compliant. In order to make a Modbus device BACnet compliant, a Modbus to BACnet gateway is required such as Contemporary Controls' BASremote. This application note explains how the BASremote can be used to bring a Modbus device up to BACnet/IP.

  Modbus 2 BACnet Device Profiles - Introduction
Step-by-step instructions for using Modbus 2 BACnet Device Profiles. 5:27

  Using Sedona with the BASremote - Monitoring a Refrigeration Unit: Part 1
Demonstrates how to define the application requirement, configure the BASremote I/O channels and prepare the email. 9:37

  Using Sedona with the BASremote - Monitoring a Refrigeration Unit: Part 2
Wire sheet development using BACnet object instance numbers, custom I/O components and email component. 10:43

  Using Sedona with the BASremote - Monitoring a Refrigeration Unit: Part 3
Using BDT to monitor the values of the BASremote via BACnet/IP communication protocol. 4:36

  Firmware Upgrade Version 3.7.8 (requires previous version 3.1.2 or above)

Sedona Framework Support Materials

  Accessing a Sedona Device Using Workbench
Demonstrates how to access a Sedona wire sheet within the BASremote using version 3.7 (or later) of Tridium's Niagara Workbench or a compatible tool. 3:35

  Visit the Sedona Technology Page



Regulatory Compliance

  North American Safety Standards Certificate, (UL 508), (CSA-C22.2 No. 142)

  Declaration of Conformity

  Electromagnetic Compatibility Chart

  Material Composition Declaration

Model Description
BASR-8M BAS Remote Master, 6 Universal I/O + 2 Relay $395
BASR-8X BAS Remote Expansion, 6 Universal I/O + 2 Relay $295
BASR-8M/P BAS Remote Master with 8 I/O points and PoE $495
