Repeaters, Links and Hubs Facilitate cabling by interconnecting multiple NIMs

ARCNET

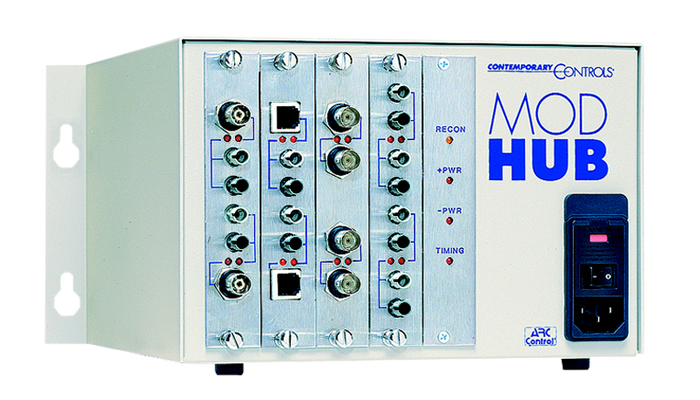

MODHUB Series

Compatible with baseband 2.5Mbps ARCNET® network

Number of Ports Supported: Up to 16 in four slots

Mixes coaxial, twisted-pair, and glass fiber optic cable in one hub

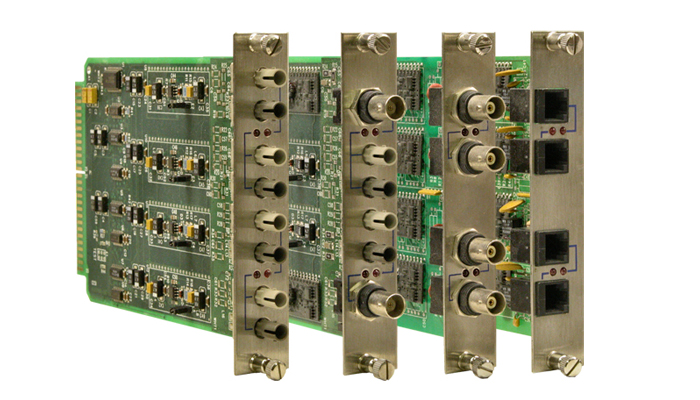

EXP Series

Combatible with the basband 2.5 Mbps ARCNET® network

Supports star or distributed star topologies

Works with MOD Hub Series active hubs

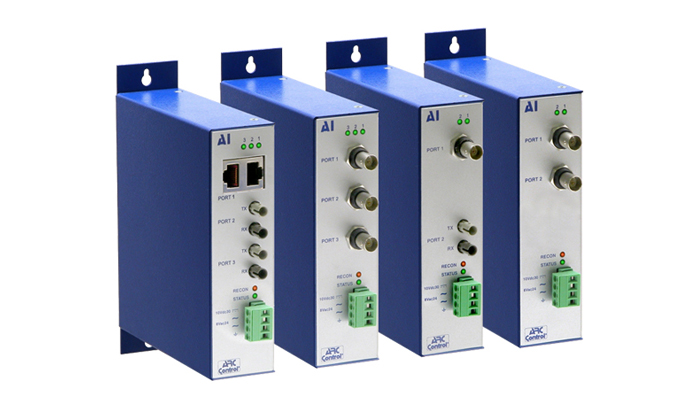

ARCNET Interconnect (AI) Series

Compatible with the baseband ARCNET® network

Number of Ports Supported: 2 or 3

Variable data rates from 78 kbps to 10 Mbps

QuickLink Series

Compatible with the baseband 2.5 Mbps ARCNET® network

Supports coaxial and twisted-pair cabling

Minimizes bit jitter with precision delay-line timing
