Portable BASrouter Portable Routing Between BACnet/IP and BACnet MS/TP networks

Product Overview

The Portable BASrouter is a compact BACnet multi-network router which provides versatile stand-alone routing between BACnet/IP, BACnet Ethernet (ISO 8802-3), and BACnet MS/TP networks. This portable BACnet router is easy to carry, web page configurable and it is powered by any 5 VDC source through it's USB connection, such as the USB port of your laptop computer. It is a great commissioning and/or troubleshooting device with BACnet diagnostic capabilities. BACnet MS/TP "Status" webpage with graphical table of present MS/TP device status and network statistics, in addition to a BACnet/IP "Routing" webpage with a discoverable routing table become useful when setting up or troubleshooting a BACnet network.

Versatile Routing Between ...

  • BACnet/IP and BACnet MS/TP
  • BACnet Ethernet and BACnet MS/TP
  • BACnet/IP and BACnet Ethernet
  • BACnet/IP and BACnet Ethernet and BACnet MS/TP
  • Two BACnet/IP Networks (between two UDP ports)

IP Network Support

  • Web server for commissioning and troubleshooting
  • DHCP option to automatically acquire IP address
  • Diagnostic web page with graphical MS/TP device status, Network Error count, and BACnet network traffic statistics
  • BACnet Routing Table web page
  • BACnet/IP Broadcast Management Device (BBMD)
  • Foreign Device Registration (FDR)

Flexible Communications

  • 10/100 Mbps Ethernet with auto-negotiation and Auto-MDIX
  • Optically isolated MS/TP port
  • MS/TP baud rates range from 9.6-76.8 kbps

Convenient Installation

  • Powered by USB connection to PC or Laptop
  • Compact plastic case can be easily stored

Product Details

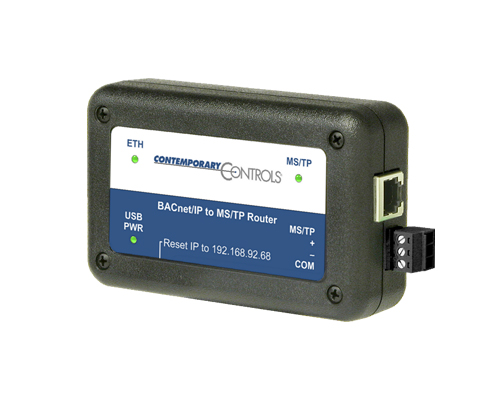

The Portable BASrouter is housed in a compact plastic case that is powered from a USB port on a PC or laptop computer. The Portable BASrouter is equipped with one optically-isolated EIA-485 port used for BACnet MS/TP, an alternative RJ-11 MS/TP port, and one 10/100 Mbps Ethernet Auto-Negotiation and Auto-MDIX port for BACnet IP, BACnet Ethernet, and web page configuration.

The MS/TP port offers an optically-isolated transceiver. It has a removable 3-pin terminal block for the EIA-485 connection or an alternative RJ-11 can be used for MS/TP connection. The Ethernet port offers a shielded RJ-45 connector. Auto-negotiation and Auto-MDIX allow this port to automatically match connections to the attached equipment. Therefore, either straight-through or crossover CAT5/6 cable can be used for hook-up. A resident web server allows for commissioning, and troubleshooting using a standard web browser. A reset switch is provided on the router to return the unit to the factory default IP address of 192.168.92.68 (/24). Three LEDs are provided: The power LED glows green when proper power is provided. A bicolour Ethernet LED glows green for 100 Mbps, and yellow for 10 Mbps, and indicates activity by flashing. MS/TP LED flashes green when valid MS/TP traffic is received. When flashing continuously and without long interruptions, the MS/TP receive LED is a good indicator that the MS/TP network is operational.

Interested in a DIN-rail version that takes 24 VAC/VDC power?
Please click here.

Ordering Information

Model Description
BASRTP-B BASrouter Portable BACnet/IP to MS/TP to Ethernet $316

Accessories

Model Description
BAS-485-TER Active EIA-485 terminator (package 5 pieces) (detalis...) $285
KIT-3POS-MINI 3 Position Mini MS/TP Communications Connector qty. 6 $14
