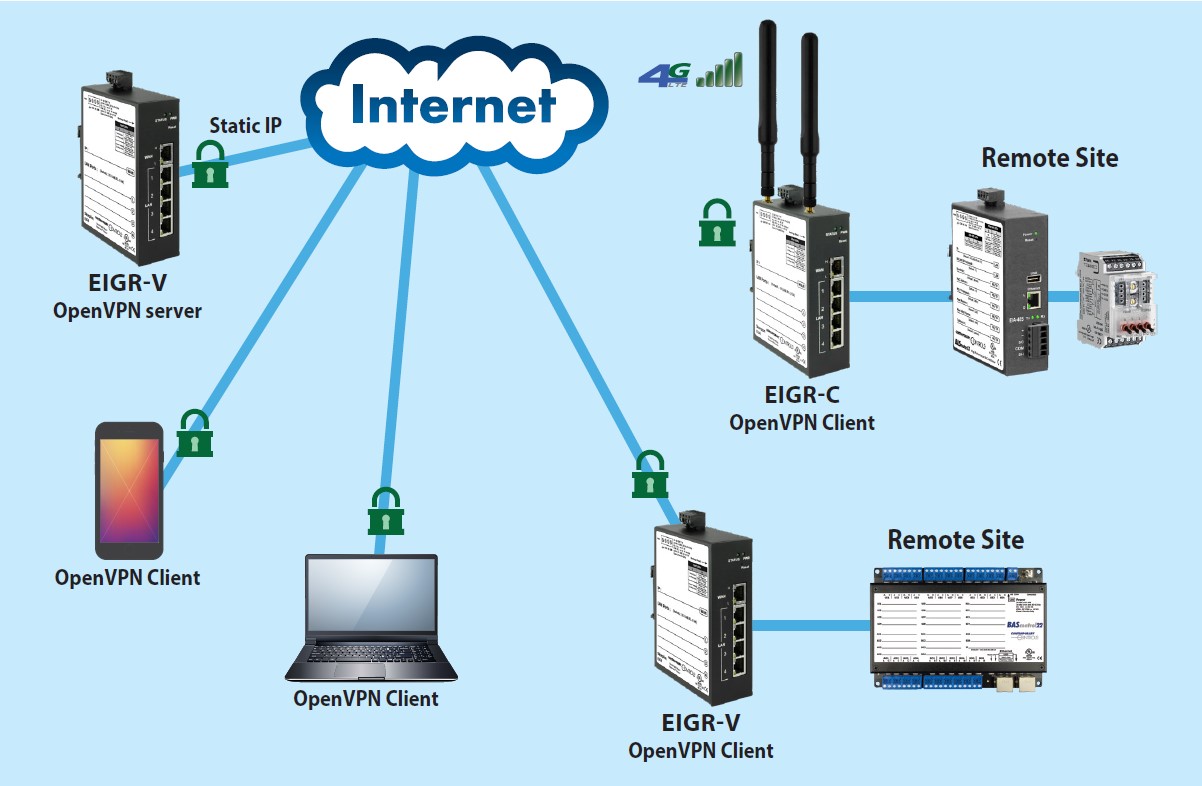

The Contemporary Controls EIPR/EIGR series of products allow you to create secure VPN remote access to your devices at the job site. The EIGR, acting as a VPN server, is installed in your office with direct Internet access. An EIGR or EIPR, acting as a VPN client, is installed at each job site. It can be behind firewalls and use wired or cellular (EIGR-Cx) networks to communicate with the EIGR. Once installed they provide a secure VPN connection between each other providing you with secure, remote access to the job site.
Our new line of Gigabit IP routers with industrial temperature rating now allows for faster speeds and higher data throughput. The EIGR IP VPN router family consists of wired secure VPN client/server features (EIGR-V), and cellular with secure VPN client/server features (EIGR-Cx) models.
The EIGR-V VPN router allows for wired, secure VPN connection to remote sites. EIGR-V Skorpion Gigabit IP Router Features...
In addition, the EIGR-Cx VPN routers allow for cellular, secure VPN connection to remote sites where wired connection is not an option. EIGR-Cx Skorpion Gigabit IP Routers options of built-in cellular modems available:
As an alternative lower cost solution, VPN-enabled EIGR routers could be used in conjunction with VPN client-enabled routers from the EIPR series - the EIPR-V, at sites where higher throughput or industrial temperature operation are not critical. In this lower-cost solution, the EIGR VPN-enabled router would be installed in the SI’s office as a VPN server, and the EIPR-V routers would be installed at the remote sites as VPN clients. Cellular communication on the EIPR-V is enabled by customer-provided USB cellular modem.
The EIPR-V is a wired VPN router which links two 10/100 Mbps Internet Protocol (IPv4) networks — passing appropriate traffic while blocking all other traffic. The built-in stateful firewall passes communication initiated on the LAN-side while blocking WAN-side initiated communication. With Port Address Translation (PAT), LAN-side clients can access the Internet. Network Address Translation (NAT) allows a one-to-one translation between LAN-side and WAN-side devices. With Port Forwarding, LAN-side devices can be accessed from the Internet. The EIPR-V incorporates a four-port Ethernet switch for multiple LAN-side connections. An external Ethernet-based modem — cable or DSL — can be used to connect to the Internet. DSL modems connect via the PPPoE protocol. Real-time clock and VPN client feature allows for secure VPN (Virtual Private Network) connection compatible with cloud-VPN service from Contemporary Controls, or it could be used in conjunction with the EIGR VPN routers where no cloud service is necessary. These remote access solutions minimize windshield time.
EIPR-V Skorpion IP Router Features...
