Compact Managed Switch Series for harsh environments

Product Overview

• Managed via the SNMP Protocol
• IGMP Snooping & Query Functionality
• 10BASE-T / 100BASE-TX / 100BASE-FX compliant
• Extended temperature range
  -40°C to +75°C
• RapidRing® Redundant Ring Technology (recovery in less than 300 ms)
• Trunking for high-speed backbone and redundancy (less than 10 ms recovery)
• Virtual LAN support (Port VLAN and 802.1Q)
• Quality of Service (QoS) support
• Programmable fault relay
• Port mirroring
• Field upgradable firmware
• Configurable via a web browser or terminal emulation
• Auto-crossover (Auto-MDIX) on twisted-pair ports
• Wide-range, low-voltage AC or DC powered
• Provision for redundant power connections
• Auto-negotiated or static data rate, duplex and flow control
• Full or half-duplex operation on twisted pair ports
• Link/activity/data rate, power and status LEDs
• Compact size
• Easy panel or DIN-rail installation
• Industrial environment EMC compatible
• CE Mark
• UL 508 listed, Industrial Control Equipment
• C-UL Listed, C22.2 CSA NO.14-M91, Industrial Control Equipment

Product Details

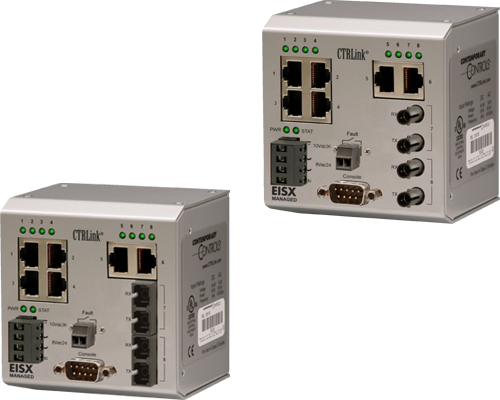

The EISXM Series of compact managed switching hubs provides management functionality in situations where outdoor temperatures are expected. Network management is significant in an outdoor scenario because in many cases the location of the switch or switches may not be easily accessible, making troubleshooting difficult. The EISXM Series also supports Simple Network Management Protocol (SNMP). Other management features include VLAN, Trunking, and Quality of Service (QoS).

The SNMP agent is comprised of a collection of managed objects that can be queried by an SNMP manager to indicate the status of the switch. When this data is displayed, operators and maintenance personnel, at a central location, can check the entire network by observing selected devices and detecting potential problems before they occur.

The programmable fault relay can be connected to a supervisory system. The fault relay can indicate unwanted links or link loss on any port.

For applications requiring redundancy, the EISXM family of products offers RapidRing^®. RapidRing allows building a redundant Ethernet network that will self-heal in less than 300 ms if any segment of the RapidRing is broken. Redundancy is also possible using trunking.

Configuration is accomplished through a web browser via any Ethernet port, or through terminal mode via the local console port. Port parameters are configurable, and device status can be modified and monitored.

Either straight-through or crossover cables may be used to connect any of the Auto-MDIX ports to stations or another hub. In addition to one power LED and one status LED, each port has an LED showing link/activity/data rate by color: green for 100 Mbps and yellow for 10 Mbps. Flashing indicates port activity.

The EISXM Series is shipped with a DIN-rail clip for installation on TS-35 DIN-rail. If direct mounting on a sub-panel is needed, an optional panel mounting bracket (shipped with the product) can be installed after removing the DIN-rail clip.

These features place the EISXM Series among the most powerful and versatile Industrial Ethernet switches.

Seeking an unmanaged version of this switch?
Click here.

Ordering Information

The EISXM Series is no longer available. Please contact your regional office for replacement options.
